Home / Deals & Bundles / Zero 88 FLX S24 4 Universe (2048 Channel) Lighting Control Console (Vari-Lite)
Zero 88 FLX S24 4 Universe (2048 Channel) Lighting Control Console (Vari-Lite)
Zero88

Zero 88 FLX S24 4 Universe (2048 Channel) Lighting Control Console (Vari-Lite)

£1,395.00£1,550.00

Intuitive Four DMX Universe Lighting Console

FLX S24 offers entry-level users an affordable and intuitive lighting console that allows technicians to configure lighting fixtures quickly via RigSync, select colours from LEE filter palettes, and assign effects from in-built presets. Lighting programming has never been easier with FLX.

The FLX S24 Console is a 24-fader DMX lighting console that offers the legacy and power of the FLX series of consoles into one easy-to use package offered at a very affordable price. Packed with intuitive features from RigSync (allowing for rapid desk setup) to on-screen programming prompts that simplifies configurations, allowing users of any skill level to create stunning light shows in no time. The simplicity of the FLX S24 console makes it the perfect entry desk for schools, small theatrical venues, houses of worship, touring shows, themed entertainment and more.

Built using the award-winning ZerOS software, FLX desks feature an intuitive, user-friendly interface powered by a 7" full colour multi touch display. Four encoder wheels and seven dedicated buttons simplify operation, enabling effortless control of intelligent and moving head fixtures. ZerOS makes managing complex setups easier than ever: with built-in presets, flexible colour tools, and dynamic effects, lighting technicians can smoothly navigate options without getting lost in nested menus.

Key Features of the Zero 88 FLX S24 Lighting Desk

The FLX S48 touch screen being used with the zerOS software to select a colour from the available ones on the display

Intuitive "three-step programing"

ZerOS makes programming easier than ever with its intuitive three-step workflow: select your fixtures, choose your parameters, and apply your effect. Designing dynamic lighting shows and effects has never been easier.

RigSync Technology offer easy configurations

RigSync simplifies DMX setup by automatically discovering and patching RDM-enabled fixtures. Continuously monitor setups and automatically fixes issues, updates configurations when new fixtures are added to existing systems.

The intelligence of RigSync takes some of the complexity out of DMX control and allows users to focus on crafting their show.

A menu displaying on the Vari-lite FLX S48 lighting console.
An example image of the ZerOS lighting software found within both the S24 & S48 lighting consoles.

Award Winning ZerOS

ZerOS makes programming easier than ever with its intuitive three-step approach, on-screen programming prompts and auto-fixture patching. Combining both the simplicity in hardware and software makes FLX a standard for lighting designers.

  • Control up to 192 fixtures - including LED, Moving Lights and conventionals
  • 48 multi-function faders
  • 97 playbacks (each with submaster & full cuestack functionality)
  • 96 groups, 4 x 96 palettes (Colour, Beamshape, Position, Effect)
  • DVI-D output for optional external touch screen (1024 x 768)
  • Multi-touch interfaces for Colour & Moving Lights
  • Dedicated GO button & playback fader for theatrical control
  • Hands-on intuitive control via 4 encoder wheels
  • Free mobile apps for wireless control of your ZerOS console on iOS and Android devices
  • Multi-lingual step-by-step touch screen guidance
  • Art-Net 4 and sACN for network output & wireless connection to smart phone / remote monitors
  • 7” multi-touch screen
  • Automatic Groups, Palettes, Effects and Macros
  • Colour picking, mixing & image capture
  • Mood Boards by LEE Filters
  • Additive, subtractive and HSV control
  • Store single or multiple cues on each of the playbacks
  • Built-in fixture library
  • RDM compatibility
  • Showfile compatibility with other ZerOS consoles
  • Quiet, dust free, fanless operation
  • Two XLR Outputs (1 x 5 pin + 1 x 3 pin)



FLX Desk comparisons

With so many desks currently on the market, choosing the correct one can be confusing; below is a comparison between the FLX S24 and QuickQ20, the closest comparable lighting desk on the market.

Zero88 FLX S24

A front view of the Zero 88 FLX lighting desk

  • Effortless three step programming, with automatic lighting configuration via RigSync technology.
  • Ideal for schools, small theatrical venues, touring shows and more.
  • Four universes (2048 channels) of lighting control out of the box.
  • 24 faders, 4 optical encoder wheels, 7 dedicated macro/function buttons, and a master theatrical GO playback section.
  • Creative colour selection from mood boards / image selection or colour picker wheel.

ChamSys QuickQ 20

A front view of the ChamSys Stadium connect lighting console

  • Easily navigable UI.
  • Ideal for schools, small theatrical venues, touring shows and more.
  • Two universe (1024 channels) of DMX lighting control.
  • 20 multi-function fixture faders with 3 different modes – Fixture, Group and Cue.
  • On-screen colour picker with adjustment sliders.

Features and Benefits of the FLX S24 Lighting Console

Simplified Programming & Fixture Patching

FLX is designed with simplicity in mind. ZerOS is designed around the three-step programming ethos: select the fixtures you want to adjust, select their colour profile and add the effect. Programing has never been easier on the FLX family of lighting consoles.
Mood boards by LEE Filters with Image Upload

Select from from one of the included colour palettes developed by LEE filters to easily set your stage, or upload an image to the FLX console to select colours directly from a photo, adding depth and variation to your stage performance.
Designed for beginners and professionals

FLX S24 offers both an entry-level desk with many simplified features alongside more advanced ones such as, support for many network based DMX protocols, like Art-Net and SACN and multicell pixel support for moving head wash fixtures, LED bars and battens.

Specifications for the Zero88 Lighting Desk

Can professional features be used on the FLX consoles?

Yes, while the FLX desk does feature many user-friendly entry-level features, it also includes support for more professional end capabilities. These include network-based DMX protocols (CITP, OSC, Vision.Net and more) alongside multicell fixture support for individually controlling LEDs on moving head wash fixtures or LED battens and bars.

Is the FLX desk a good choice for use in schools?

Yes, the FLX console is an excellent choice for school drama halls and stage setups. Currently used in many up and down the UK, these desks are extremely popular with them tanks to their simplicity, on-screen guidance and three-step programming principle.

What storage options are available for the FLX console?

Offered alongside the FLX S24 console is the compatible flight case. This case is a foam-lined case specifically designed for those on the road touring or in need of additional protection for their FLX console. Desks can still be used while in the flight case; simply remove the top, connect your console and begin controlling your lighting fixtures.

What are the key features of the FLX S24 console?

  • Simple "three-step programming" principle allows for easy programming of lighting fixtures.
  • RigSync technology automatically detects, patches and amends RDM compatible lighting fixtures, taking the difficulty out of configuring your setup.
  • 24 faders with four encoder wheels to control up 96 lighting fixtures via four-universes of DMX.
  • Remote access via mobile apps or add additional displays.


FLX S24 & S48 product video


Specifications

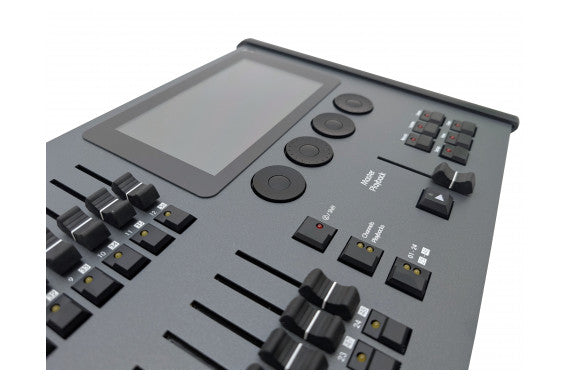

Hardware - Front Panel

  • 24 Multifunctional Faders (channels or playbacks, with select or go buttons)
  • Internal 7” multi-touch screen
  • Master Playback with Go Button playback and master intensity
  • 4 embedded encoder wheels with select buttons
  • Dedicated buttons for key functions

Hardware - Inputs/Outputs

  • 1 5-pin XLR connector for DMX and RDM
  • 1 3-pin XLR connector for DMX and RDM
  • Ethernet (visualisation and Remote Apps)
  • 4 Universes over Ethernet using Art-Net 4 or sACN
  • 2 multipurpose USB ports (saving shows, connection of accessories & Wings, software updates)
  • External power supply

Software - capacity

  • 48 Fixture Controls (using single or multiple DMX channels)
  • 49 Playbacks (equivalent of Cue Stacks, Submasters or Chases)
  • 10,000 cues
  • 4 x 48 Palettes (Colour, Beamshape, Position, Effect)
  • 48 groups

Software - features

  • Integrated colour picker and “Mood Boards by LEE Filters”
  • Multi touch Pan/Tilt grid
  • Auto palettes, groups and fixture macros
  • Gobo previews and library
  • Move on Dark
  • Tracking and Non-Tracking modes available
  • Support for wireless remote control through handheld devices and remote monitors

Electrical

  • Supply voltage range: 100 - 240V AC; MAX 2A
  • Frequency: 50 - 60Hz
  • Operating temp
