RCF ART 712-A MK5
RCF ART 712-A MK5
Couldn't load pickup availability
The RCF ART 712-A MK5 speaker features a 1.75-inch compression driver which provides exceptional vocal clarity and sonic projection. The 12-inch woofer has a high linear response and precise, deep low-frequency control. The transducers are made with the most advanced assembly technologies. The amplifier outputs 1400 watts and is controlled by a DSP that handles crossover, equalisation, phase control, soft limiting, and speaker protection.
Superior transducers
The woofers and compression drivers are precisely crafted using RCF technology and a wealth of professional expertise and experience devoted to exceeding expectations.
Powerful class D amplifiers
RCF's Class-D power amplifier technology crams massive performance and outstanding efficiency into a lightweight package. ART 7 amplifiers provide lightning-fast attack, realistic transient response, and outstanding audio performance. The amplifier has a robust mechanical aluminium frame that not only stabilises the amplifier during transportation but also aids in heat dissipation without the use of a fan. All ART 7 amplifiers use an SMPS power supply component to deliver maximum output while weighing the least amount.
Experience Depths of Sound
XBoost exposes the profound low frequencies hidden within ART speakers. Immerse yourself in a rich tapestry of bass that pounds with remarkable clarity and control by simply activating it from the speaker's rear panel. Whether you're looking for unobtrusive background music or an enhanced audio experience for your mix, XBoost provides an incredible perception of deepened bass, guaranteeing that each note retains its pure purity while keeping the woofer excursion under control.
The Perfect Stage Partner
The ART 7 speakers are an excellent choice for musicians and sound providers alike. Their cabinets are made of a special polypropylene composite designed to reduce vibrations even at high volumes. This leads into remarkable dependability and resilience under demanding stage circumstances.
A New Take on Linearity
RCF speakers use exclusive and advanced digital FiR technology to provide the listener with clear sound, extreme clarity, and excellent image. The particular FiRPHASE filters ensure that sound is distributed coherently to all listeners without phase distortions, resulting in the system's lowest latencies.
Take ART Anywhere

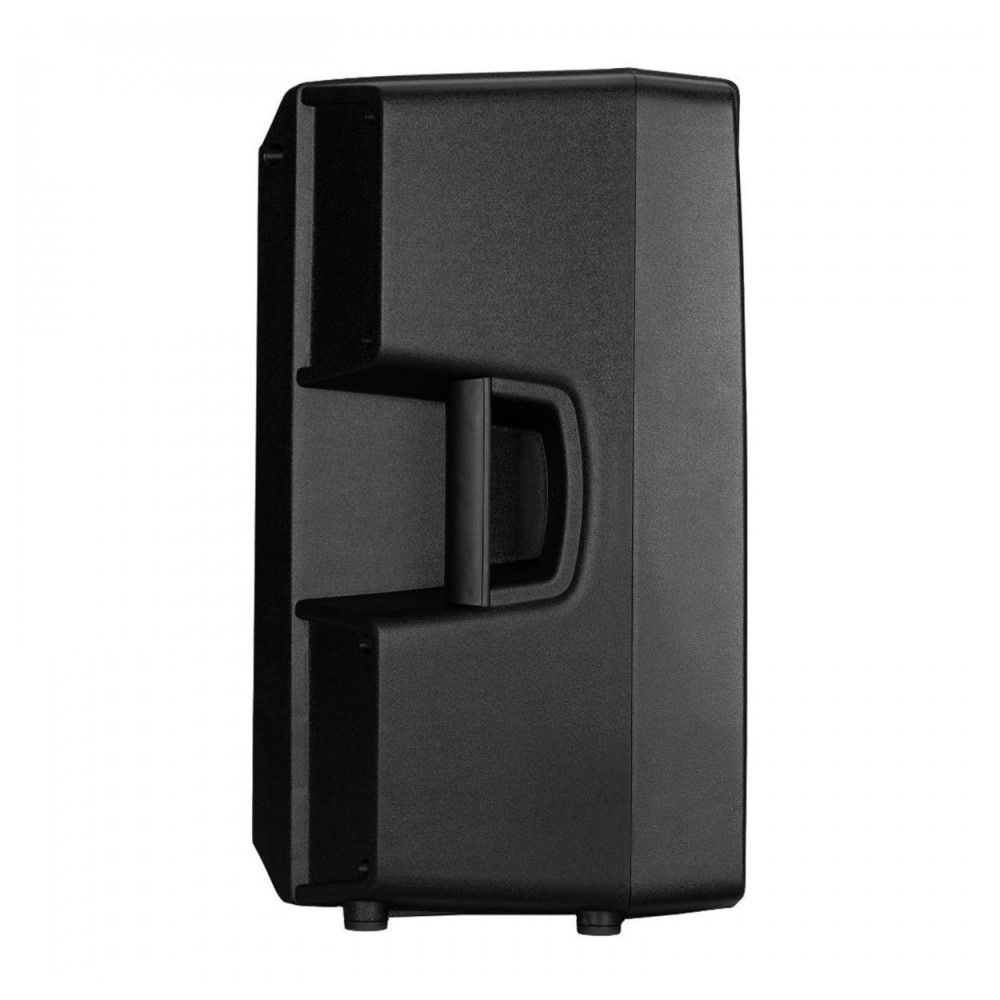

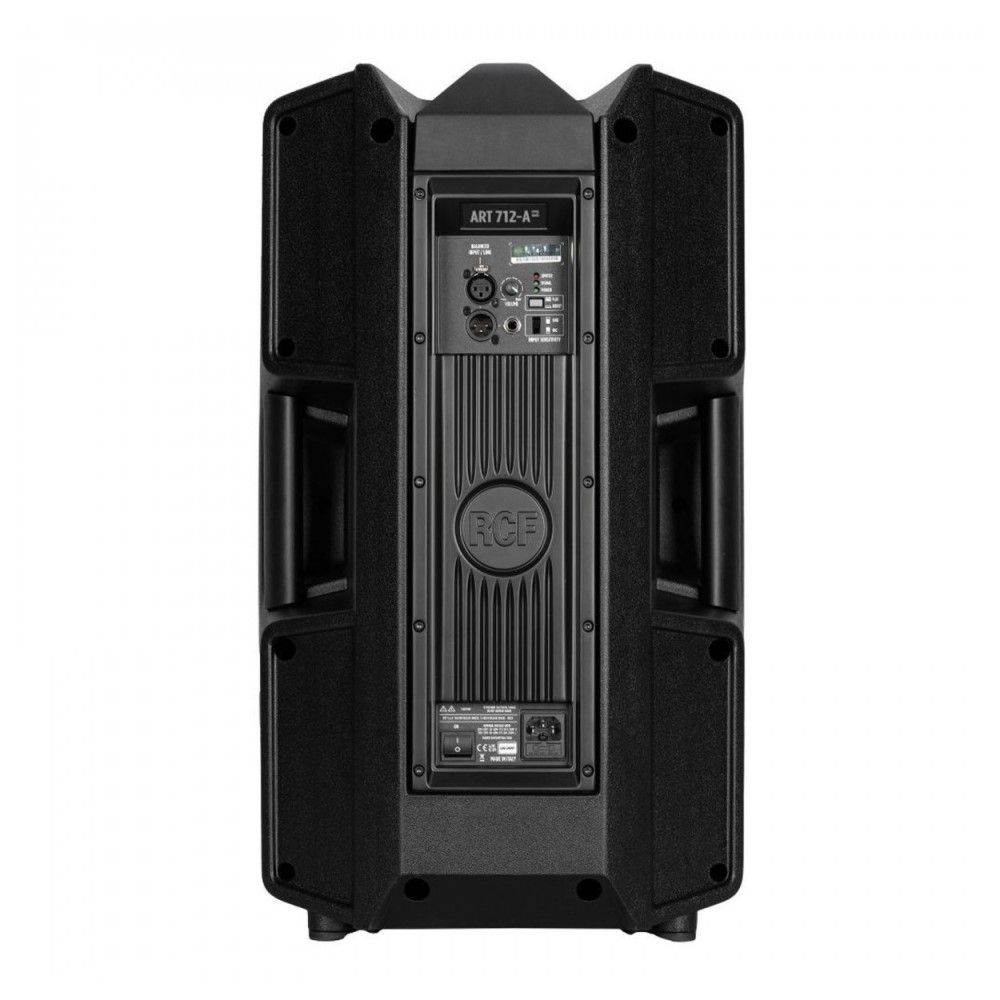

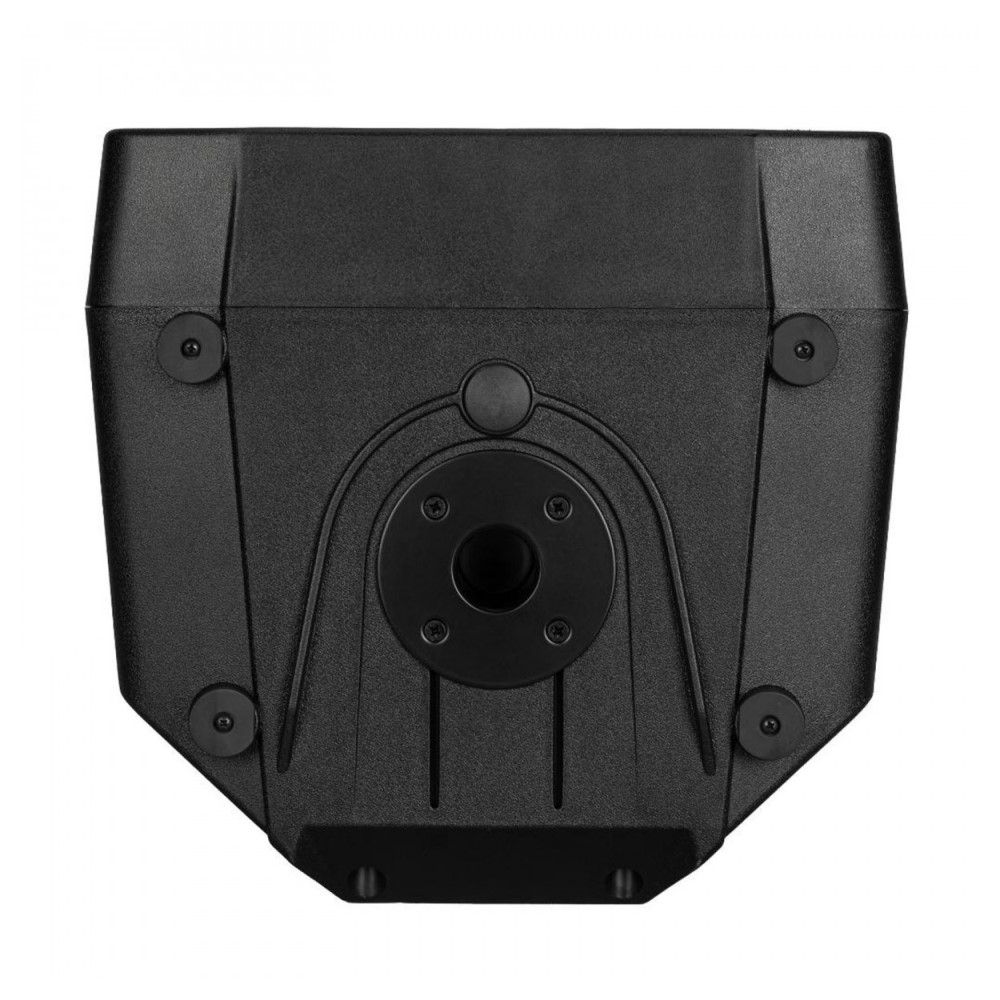

The durable, ergonomic cabinet is simple to transport, thanks to either the top handle or the convenient handles on both sides. Each speaker's base has a steel pole socket for attachment to a stand or a subwoofer pole. Stability and safety are ensured. The cabinet's rear is designed to function as a floor monitor as well. The cabinet is internally reinforced to avoid distortion.
Features
- 129 dB Max SPL
- 1400 WATT 2-way peak power
- 90° x 60°, Wide dispersion constant directivity horn
- Innovative DSP Processing
- 1,75" Compression Driver
- 12" Woofer
- FiRPHASE Technology
- XBOOST Low Frequencies Enhancer
Tech spec
ACOUSTICAL SPECIFICATIONS
- Frequency Response: 50 Hz ÷ 20000 Hz
- Max SPL @ 1m: 129 dB
- Horizontal coverage angle: 90°
- Vertical coverage angle: 60°
TRANSDUCERS
- Compression Driver: 1 x 1.0'', 1.75'' v.c
- Woofer: 12'', 2.5'' v.c
INPUT/OUTPUT SECTION
- Input signal: bal/unbal
- Input connectors: XLR, Jack
- Output connectors: XLR
- Input sensitivity: -2 dBu/+4 dBu
- Mic. Input Sensitivity: -32 dBu
PROCESSOR SECTION
- Crossover Frequencies: 1600
- Protections: Thermal, RMS
- Limiter: Soft Limiter
- Controls: Volume, Boost, MIC/Line
POWER SECTION
- Total Power: 1400 W Peak
- High frequencies: 400 W Peak
- Low frequencies: 1000 W Peak
- Cooling: Convection
- Connections: VDE
STANDARD COMPLIANCE
- Safety agency: CE compliant
PHYSICAL SPECIFICATIONS
- Cabinet/Case Material: PP Composite
- Hardware: 2 x M10
- Handles: 1 on top, 1 each side
- Pole mount/Cap: Yes
- Grille: Steel
- Colour: Black
SIZE
- Height: 637 mm / 25.08 inches
- Width: 387 mm / 15.24 inches
- Depth: 363 mm / 14.29 inches
- Weight: 17.8 kg / 39.24 lbs
